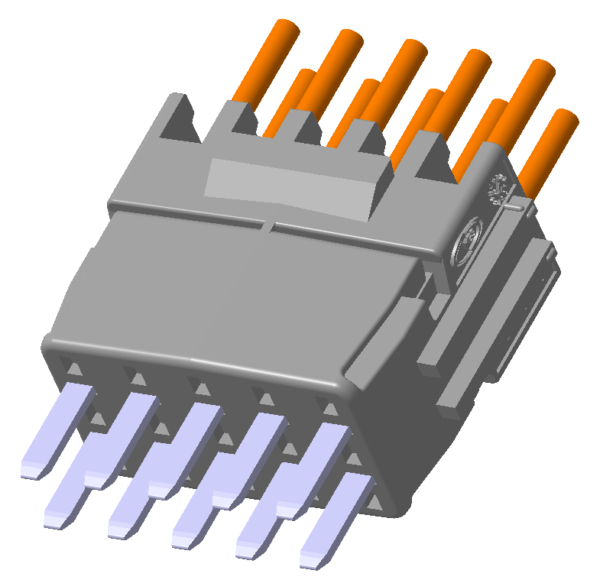

10w Insert Male 1,6
Sold as: A single part or part of a cable harness
Detail Product Description:
| Connector Gender: | Insert – Male |
| Numbers of Ways: | 10w |
| Pitch (mm): | 4 |
| Terminal Blade Size (mm): | 1.6 x 0.6 |
| Terminal No.: | Unsealed system male terminals acc. to VW draw. N103360, N103361 |
| Cable Exit Angle: | 180° |
| Connector Size (L x W x H): | – |
| Connector Mounting Type: | Snap Fit |
| Primary Product Color: | Grey |
| Material: | PBT GF10 |
| Operating Temperature Range: | -40/+130°C |
| Sealable: | Yes |
| Seal No.: | – |
| TPA – Terminal Positioning Assurance: | Yes |
| TPA no.: | As part of the component |
| Counterpart: | 4H0 973 715 |
| Additional Accessories: | – |
| Sold as: | A single part or part of a cable harness |
Packaging Features:
| Packaging Type: | Cardboard box |
| Quantity (pcs): | 4000 |
| Total Weight (Kg): | – |
| Size (L x W x H): | – |
