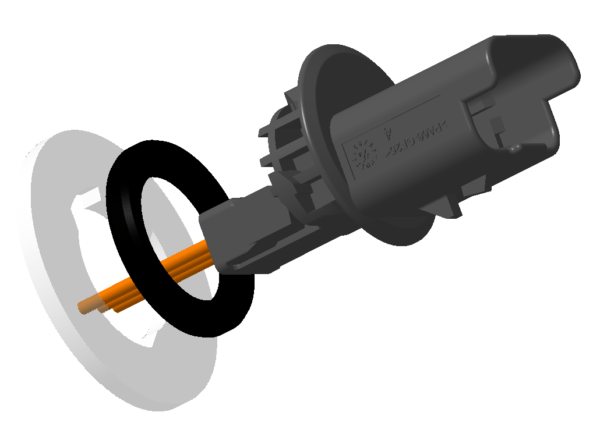

3w Connector Male SICMA4 1,5
Sold as: A single part or part of a cable harness
Detail Product Description:
| Connector Gender: | Male |
| Numbers of Ways: | 3w |
| Pitch (mm): | 3.33 |
| Terminal Blade Size (mm): | 1.5 x 0.8 |
| Terminal No.: | SICMA4 unsealed system male terminals acc. to Delphi draw. PCC0815468 |
| Cable Exit Angle: | 180° |
| Connector Size (L x W x H): | – |
| Connector Mounting Type: | Bayonet |
| Primary Product Color: | Black |
| Material: | PA6.6 GF25 |
| Operating Temperature Range: | -40/+85°C |
| Sealable: | Yes |
| Seal No.: | F00I6400 (EPDM) |
| TPA – Terminal Positioning Assurance: | Yes |
| TPA no.: | As part of the component |
| Counterpart: | TE REF. 1801178-1 (KEY A, black) |
| Additional Accessories: | – |
| Sold as: | A single part or part of a cable harness |
Packaging Features:
| Packaging Type: | Cardboard box |
| Quantity (pcs): | 1000 |
| Total Weight (Kg): | – |
| Size (L x W x H): | – |
